S2 EHR Model

The root EHR object records three pieces of information that are immutable after creation: the identifier of the system in which the EHR was created, the identifier of the EHR (distinct from any identifier for the subject of care), and the time of creation of the EHR. Otherwise, it simply acts as an access point for the component parts of the EHR.

The system_id attribute is used to record the identifier of the logical EHR repository to which the data containing the audit are committed. What constitutes a 'system' in this context is described in more detail in the Architecture Overview.

References rather than containment by value are used for the relationship between the EHR and Versioned_X objects, reflecting the vast majority of retrieval scenarios in which only selected (usually recent) items are needed. Containment by value would lead to systems which retrieved all Versioned_X objects every time the EHR object was accessed.

Access control settings for the whole EHR are specified in the Ehr_access object. This includes default privacy policy, lists of identified accessors (individuals and groups) and exceptions to the default policies, each one identifying a particular Composition in the EHR. All changes to the EHR Access object are versioned via the normal mechanism, ensuring that the visible view of the EHR at any previous point in time is reconstructable.

Because security models for health information are still in their infancy, the openEHR model adopts a completely flexible approach. Only two hard-wired attributes are defined in the Ehr_access class. The first is the name of the security scheme currently in use, while the second (settings attribute) is an object containing the access settings for the EHR according to that particular scheme. Each scheme is defined by an instance of a subclass of the abstract class ACCESS_CONTROL_SETTINGS, defined in the Security Information Model.

The Ehr_status object contains a small number of hard-wired attributes, and an archetyped other_details part. The former are used to indicate who is (currently understood to be) the subject of the record, and whether the EHR is actively in use, inactive, and whether it should be considered queryable. As for elsewhere in the openEHR EHR, the subject is represented by a Party_self object, enabling it to be made completely anonymous, or alternatively to include a patient identifier. The subject is included in the EHR Status object because it can change, due to errors being discovered in the allocation of records to patients. If the anonymous form is used, the change will be made elsewhere in a cross-reference table; otherwise the EHR Status object will be updated. Because it is versioned, all such changes are audit-trailed, and the change history can be reconstructed.

Other EHR-wide meta-data may be recorded in the archetyped part of this object, including runtime environment settings, software application names and version ids, identification and versions of data resources such as terminologies and possibly even actual software tools, configuration files, keys and so on. Such information is commonly versioned in software configuration management systems, in order to enable the reconstruction of earlier versions of software with the correct tools. One reason to store such information at all is that it adds to medico-legal support when clinicians have to justify a seemingly bad decision: if it can be shown that the version of software in use at the time was faulty, they are protected, but to do this requires that such information be recorded in the first place.

The main data of the EHR is found in its Compositions, i.e. instances of the Composition class in the RM. Composition is based on the notion of a unit of information resulting from the interaction of a healthcare agent (subject or healthcare professional) with the EHR. It is designed to satisfy the following needs, which include the well-known ACID characteristics of transactions (Gray & Reuter, 1993).

The Composition concept originated from the 'Transaction' concept of the GEHR project (Lloyd, 1992), (Lloyd, 1993), (Heard, Kalra, & Ingram, 1994), (Beale, Lloyd, Heard, Kalra, & Ingram, 1995). In openEHR, it was renamed to 'Composition' (the name of the equivalent concept in ISO 13606-1), and it has been expanded and more formally defined in openEHR in two ways. Firstly, the idea of a unit of committal has been formalised by the openEHR model of change control (see the openEHR Common Information Model); how this applies to the EHR and Compositions is described below.

Secondly, the informational purpose of a Composition is not just to capture data from a passing clinical event such as a patient contact, but also to track longitudinal significant patient state, such as problems, allergies and medications. Accordingly, openEHR Compositions are temporally classified using a small number of broad categories recorded in the Composition.category attribute. Categories include event, episodic and persistent. From a scientific realist ontological point of view, the kind of information recorded in a persistent Composition approximates a description of some continuant aspect of the patient (see Arp Smith & Spear (2015), Sowa (2000)). This is in contrast with event Compositions, which record occurrents, i.e. events or states that occurred or were true at some moment in time. The episodic category corresponds to information that is relevant for the period of time of a care episode.

As Compositions accumulate over time in the EHR, they form a long-term patient history. The folders structures can be used in the EHR to index Compositions using one or more versioned hierarchies of FOLDER objects. In the openEHR model, Folder structures do not contain Compositions, only references to them. More than one Folder can therefore refer to the same Composition or other target object. If folders is not Void, the directory attribute always contains a reference to the first member, for backward compatibility with pre-Release 1.1.0 systems.

Structurally, each reference in folders points to a logical tree of FOLDER objects each potentially containing references to Compositions, or possibly just more FOLDERS. Each such tree is versioned, i.e. each version of one folder tree contains a modified version of the previous state of the tree. Folder trees consist of FOLDER objects, which inherit from the LOCATABALE, enabling archetypes to be used to define specific folder tree structures. Within a Folder archetype, the details attribute may be configured to contain meta-data specific to the purpose of the Folder (tree).

The directory reference may be considered by convention as referring to a folder hierarchy that is shared by all users of the EHR to which it is attached, e.g. all medical specialities, departments or settings. It might thus be used to represent episodes. In this case, the other Folder hierarchies referred to by folders might be created, maintained and used by different departments, specialities etc. However, completely different usage of the folder structures is possible. Use of Folder archetypes should be considered for communicating the intended usage in a particular system.

In any Folder hierarchy, regardless of specific use, Folders may be added or removed contemporaneously or subsequently to the committal of the referenced Compositions, including after substantial time has passed. Contemporaneous additions would normally be included in the same Contribution as the referenced Compositions. Similarly, at any time, an entirely new Folder hierarchy may be added, which will be referenced by a new member of the EHR.folders attribute.

Semantically, Folders may be used to manage a simple classification of Compositions, e.g into Event and Persistent, or they might be used to create categories based on episodes or other groupings of Compositions.

A Folder structure containing references to Compositions is shown below, in which the following Folders are used:

This structure separates out Compositions on the basis of likely access by applications. Persistent Compositions remain relevant, usually for the patient lifetime, consequently need to be quickly accessible by numerous applications views. Event Compositions contain information whose relevance may fade quickly (e.g. vital signs measurements) or which are effectively indexed by various persistent compositions (e.g. diagnoses). They are indexed in this example by a Folder structure that makes it easy to find Compositions on the basis of problem type (diabetes etc), and then by type of visit.

Neither the Folder names nor the Composition names illustrated above are part of the openEHR EHR reference model: all such details are provided by archetypes; hence, EHR structures based on completely different conceptions of division of information, or even different types of medicine are equally possible.

The Folder hierarchy in each member of the folders attribute is maintained in its own versioned object, ensuring that changes to the indexing structure are versioned over time in the same way as changes to the EHR content itself.

Items in the EHR may be tagged using openEHR tags, which are lightweight annotations that may be used to thematically classify previously committed data items for convenient subsequent retrieval. They are described in detail in the Common IM Tags section.

Tags are associated with an EHR via the EHR.tags attribute, but have no direct association with the objects they annotate. This has the following consequences:

The last point implies that if there is a tag "clin-proj-27a" and it is used on 13 EHR content items, there will be 13 separate tag instances with key = "clin-proj-27a". If one is modified or deleted, it has no effect on the others.

According to the model, all tags reside within one logical list, i.e. EHR.tags. No grouping is used. In order to achieve efficient access of all tags with the same key, indexing would be required.

The primary use of tags post-creation is in querying, and their use is supported directly in the openEHR AQL query language such that a query mentioning a tag (either by key, or key/value pair if applicable) will return all items of any RM type annotated by the tag in question.

Versioning of Compositions is achieved with the Versioned_object<T> type from the Common IM change_control package, which in the composition package is explicitly bound to the Composition class, via the class Versioned_Composition which inherits from the type VERSIONED<Composition>.

The effect of version control on Compositions is visualised in the figure below. The versions (each version being an Original_version<Composition>) shown here in a Versioned_Composition are the same versions shown along each vertical line in Figure 8, this time shown with their associated audit items. The set of versions are understood as a set of successive modifications of the same data in time.

The Versioned_Composition can be thought of as a smart repository: how it stores successive versions in time is an implementation concern (there are a number of intelligent algorithms available for this), but what is important is that its functional interface enables any version to be retrieved, whether it be the latest, the first, or any in between.

The following scenarios for creating new Composition versions have been identified as follows.

In summary, the AUDIT_DETAILS is always used to document the addition of information locally, regardless of where it has come from. If there is a need to record original audit details (via the Composition.feeder_audit), they become part of the content of the versioned object.

openEHR EHRs are created due to two types of events. The first is a new patient presenting at the provider institution. An EHR may be created due to this event, without reference to any other openEHR EHRs that may exist in the broader community or jurisdiction. In this case, the EHR will be allocated a new, globally unique EHR id. This establishes the new EHR as an intentional clone of the source EHR (or more correctly, part of the family of EHRs making up the virtual EHR for that patient).

On the other hand, an openEHR EHR may be created in an organisation as a logical clone (probably partial) of an EHR for the patient that exists in some other system. This might happen as a normal part of the front-desk registration / admission process, i.e. the local EHR system is able to interrogate an EHR location service and discover if any other EHR exists for this patient, or it may occur due to purely electronic communications between two providers, i.e. the EHR is created because an Extract of an EHR has been sent from elsewhere as part of a referral or similar communication. In this second case, the EHR id should be a copy of the EHR id from the other institution. In all cases, the EHR.system_id value should be set to the value that would normally be used for locally created EHRs. In the case of creating a cloned EHR, the system_id is from the receiving (cloning) system.

In theory such a scheme could guarantee one EHR id per patient, but of course in reality, various factors conspire against this, and it can only approximate it. For one thing, it is known that providers routinely create new EHRs for a patient regardless of how many other EHRs already exist for that patient, simply because they have no easy way to find out about those EHRs. Ideally, this situation would be improved in the openEHR world, but due to reliance on such things as distributed services and reliable person identification, there are no guarantees. The best that can be said is that the EHR id allocation scheme can help support an ideal EHR id-per-patient situation if and when it becomes possible.

When an EHR is created, the result should be a root EHR object, an EHR Status object, and an EHR Access object, plus any other house-keeping information the versioning implementation requires. In a normal implementation, the EHR Status and EHR Access objects would be created and committed in a Contribution, just as any Composition would be. The EHR Status object has a special status in the EHR, indicating whether the EHR should be included in querying, whether it is modifiable, and by implication, whether it is active. Flags might be set to indicate that it is test record, or for educational or training purposes. The initial creation operation has to supply sufficient parameters for creation of these two objects, including:

The EHR id will either be a new globally unique identifier, in the case of first time EHR creation for this patient in the health system, or else the same identifier as an existing EHR for the same subject in another system, in the case of an EHR move or copy. The effect of EHR copying / synchronising between systems is that EHRs with the same identifier can be found within multiple systems. However if the same patient presented at multiple provider locations with no EHR sharing capability, a new EHR with a unique identifier will be created at each place. If a later request for copying occurs (e.g. due to a request for an EHR Extract) between two providers, the requesting institution will perform the merge of the received copy into the existing EHR for the same patient.

The main consequences in a distributed environment are as follows:

Note that the first situation is not a problem, and is not the same as the situation in which two EHRs are identified as being for different patients (i.e. subject id rather than EHR id is different) when in fact they are for the same person.

Directory paths are built using the name attribute values inherited from Locatable into each FOLDER object. In real data, these will usually be derived from the value of the archetype_node_id attribute, plus a uniqueness modifier if required. Example paths (e.g. within the EHR):

Uniqueness modifiers are appended in brackets, and are only needed to differentiate folders at the same node that would otherwise have the same names, e.g.

The openEHR EHR model takes account of a systematic analysis of "context". Contexts in the real world are mapped to particular levels of the information model in a clear way, according to the scheme shown in FIGURE 12. On the left hand side is depicted the context of a data-entry session in which the information generated by a "healthcare event", containing "clinical statements", is added to the EHR. A healthcare event is defined as any business activity of the health care system for the patient, including encounters, pathology tests, and interventions. A clinical statement is the minimal indivisible unit of information the clinician wants to record. Clinical statements are shown in the diagram has having temporal and spatial structure as well as data values. Each of these three contexts has its own audit information, consisting of who, when, where, why information.

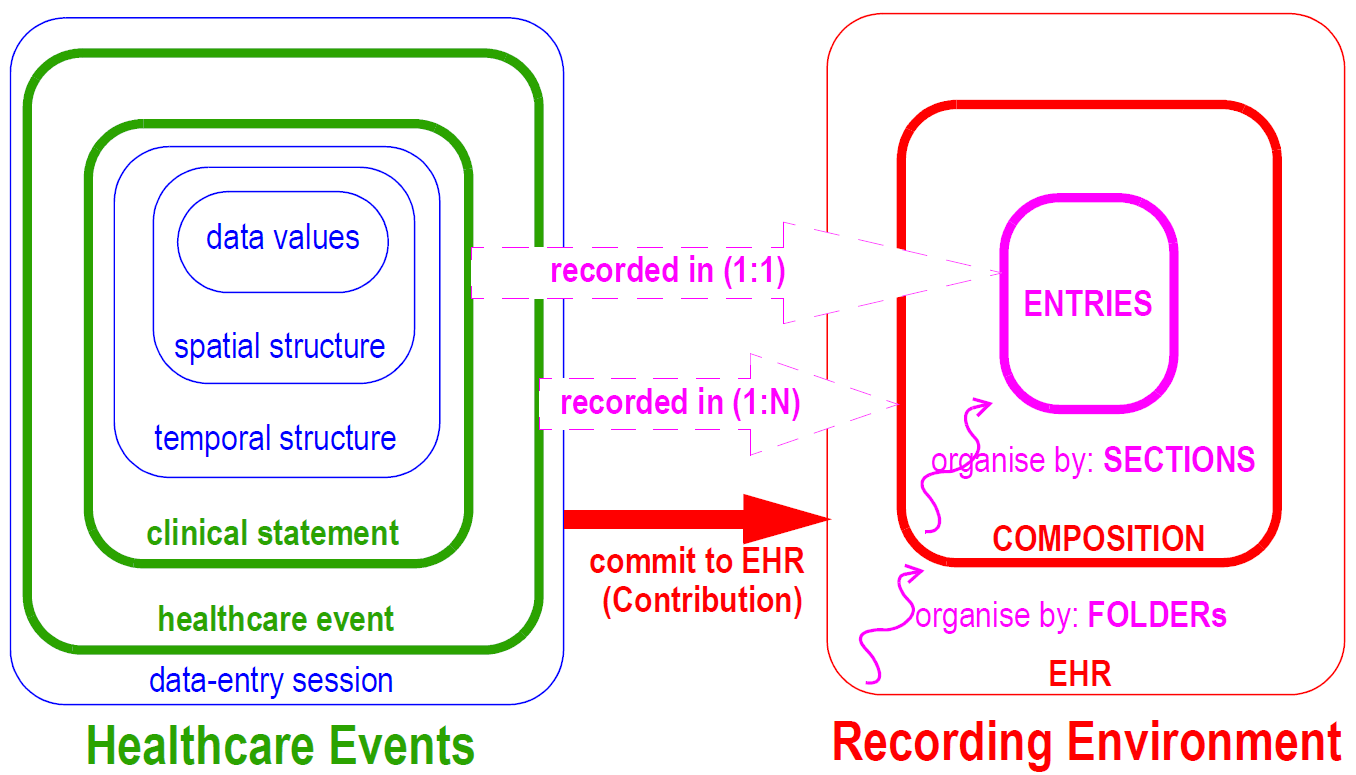

On the right-hand side of Figure 16, the EHR recording environment is represented. The EHR consists of distinct, coarse-grained items known as Compositions added over time and organised by Folders. Each Composition consists of Entries, organised by Sections within the Composition. The audit information for each context is recorded at the corresponding level of the EHR.

The author is the person who was responsible for the content of the Composition. This is the identifier that should appear on the screen. It could be a junior doctor who did all the work, even if not legally responsible, or it could be a nurse, even if later attested by a more senior clinician; it will be the patient in the case of patient-entered data. It may or may not be the person who entered and committed the data. it may also be a software agent. This attribute is mandatory, since all content must be been created by some person or agent.

Since in many cases Compositions will be composed and committed by the same person, it might seem that two identifiers Composition.author and Version.audit.committer (which are both of type Party_proxy) will be identical. In fact, this will probably not be the case, because the kind of identifier to represent the composer will be a demographic identifier, e.g. "RN Jane Williams", "RN 12345678", whereas the identifier in the audit details will usually be a computer system user identifier, e.g. "jane.williams@westmead.health.au". This difference highlights the different purposes of these attributes: the first exists to identify the clinical agent who created the information, while the second exists to identify the logged-in user who committed it to the system.

In the situation of patient-entered data, the special "self" Party_proxy instance (see Common IM generic package) is used for both Composition.author and Version.audit.committer.

The optional event_context attribute in the Composition class is used to document the healthcare event causing new or changed content in the record. Here, 'healthcare event' means 'a (generally billable) business activity of the healthcare system with, for or on behalf of the patient'. Generally this will an encounter involving the subject of care and physician, but is variable in a hospital environment. In this sense, a visit to a GP is a single care event, but so is an episode in a hospital, which may encompass multiple encounters. The information recorded in Event context includes start and (optional) end time of the event, health care facility, setting (e.g. primary care, aged care, hospital), participating healthcare professionals, and optional further details defined by an archetype.

Healthcare events that require an Event_context instance in their recorded information include the following.

Situations in which Event context is not used include:

Ultimately, the use of Event context will be controlled by Composition-level archetypes.

For situations requiring an Event_context object to be recorded, it is worth clarifying which Compositions carry such objects. Consider the example shown in Figure 17. In this example, a Contribution is made to the EHR, consisting of one or more Compositions that were each created or modified due to some clinical activity. Within such a set, there will usually be one Composition relating directly to the event, such as the patient contact - this is the Composition containing the doctor’s observations, nurses' activities etc, during the visit, and is therefore the one which contains the Event_context instance. Other Compositions changed during the same event (e.g. updates to medication list, family history and so on) do not require an Event context, since they are part of the same Contribution, and the event context of the primary Composition can always be retrieved if desired. Contributions A, B and C in the figure illustrate this case.

In cases where Contributions are made to the record with no event context, the Event context of any Compositions from the original commit will remain intact and visible (unless the correction is to the event context itself of course), and will correctly reflect the fact that no new clinical interaction occurred. This is the case with Contribution D in the figure.

The times recorded in the Event context represent the time of an encounter or other activity undertaken by a health provider to/for/on behalf of the patient. The time is represented as a mandatory start time and optional end time. It is assumed that where there is a clinical session (i.e. an Event_context object does exist), the start time is known or can be reasonably approximated. It is quite common that the end time of a consultation or encounter is not recorded, but rather inferred from e.g. average consult times, or the start time of the next consult for the same physician.

Event context is used as described above even if the additions are made to the EHR long after the event took place, such as happens when a doctor writes his/her notes into the record system at night, after all patients have been seen. In such cases, the versioned Composition audit trail records the context of when the data were entered, as distinct from the context of when the clinical interaction took place.

Is part of the Event context, the participations attribute can be used to describe who participated, and how. Each participation object describes the "mode" of participation as well, such as direct presence, video-conference and so on. In many cases such information is of no interest, since the subject of any Entry is known (Entry.subject) and the clinician will be known (Composition.author), and the mode of communication is assumed to be a personal encounter. The participations attribute is therefore used when it is desired to record further details of how the patient and or physician interacted (e.g. over the internet), and/or other participants, such as family, nurses, specialists etc.

There are no general rules about who is included as a participant. For example, while there will be a patient participation during a GP visit, there will be no such participation recorded when the clinical event is a tissue test in a laboratory. Conversely, a patient might record some observations and drug self-administration in the record, in which case the author will be the patient, and there will be no clinician participation. Consequently, the use of participations will mostly be archetype-driven.

The health_care_facility (HCF) attribute is used to record the health care facility in whose care the event took place. This is the most specific identifiable (i.e. having a provider id within the health system) workgroup or care delivery unit within a care delivery enterprise which was involved in the care event. The identification of the HCF can be used to ensure medico-legal accountability. Often, the HCF is also where the encounter physically took place, but not in the case of patient home visits, internet contacts or emergency care; the HCF should not be thought of as a physical place, but as a care delivery management unit. The physical place of care can be separately recorded in Event_context.location. The health_care_facility attribute is optional to allow for cases where the clinical event did not involve any care delivery enterprise, e.g. self-care at home by the patient, emergency revival by a non-professional (e.g. CPR by lifeguard on a beach), care by a professional acting in an unofficial capacity (doctor on a plane asked to aid a passenger in difficulty). In all other cases, it is mandatory. Archetypes are used to control this.

Two other context attributes complete the predefined notion of event context in the model: location and setting. The location attribute records: the physical location where the care delivery took place, and should document a reasonably specific identifiable location. Examples include "bed 5, ward E", "home". This attribute is optional, since the location is not always known, particularly in legacy data.

The setting attribute is used to document the "setting" of the care event. In clinical record keeping, this has been found to be a useful coarse-grained classifier of information. The openEHR Terminology "setting" group is used to code this attribute. It is mandatory, on the basis that making it optional will reduce its utility for querying and classification.
